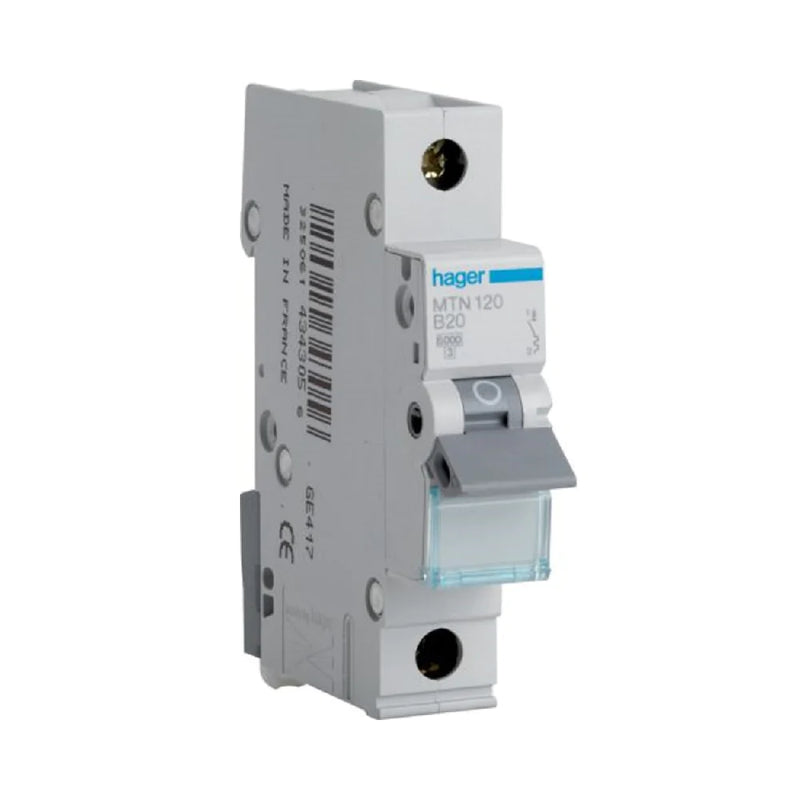

MCB Circuit Breaker Hager MCN120 6kA 1Pole - 20A

by Hager
Original price Dhs. 15.00 - Original price Dhs. 15.00
Original price
Dhs. 15.00
Dhs. 15.00 - Dhs. 15.00
Current price Dhs. 15.00
  • Description
  • Data Sheet
  • MCB 1P 6kA B-20A 1M

    Technical characteristics Architecture Neutral position not applicable Number of poles 1 P Type of pole 1 P Fixing mode DIN rail type O (symmetrical) Curve B Main electrical features Rated operational voltage Ue 230 / 400 V Frequency 50/60 Hz Rated current 20 A Type of supply voltage AC Voltage Rated insulation voltage 500 V Rated impulse withstand voltage 4000 V Electric current Rated service breaking capacity Ics AC according IEC 60898-1 6 kA Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1 6 kA Electric current / temperature Rating current 30°C 20 A Dimensions Depth of installed product 70 mm Height of installed product 83 mm Width of installed product 17,5 mm Power Total power loss under IN 2,79 W Endurance Electric endurance in number of cycles 4000 Number of mechanical operations 20000 Capacity Number of modules 1 Installation, mounting Tightening torque 2,8Nm Connection Connection cross-sect. flexible conductor 1 / 25mm² Connection cross-sect. rigid cable 1 / 35mm² Type of connection with screw Equipment Quick connect no Standards Standard text EN 60898-1 European directive WEEE concerned Safety Protection index IP IP20 Use conditions

  • Download The Data Sheet Here
