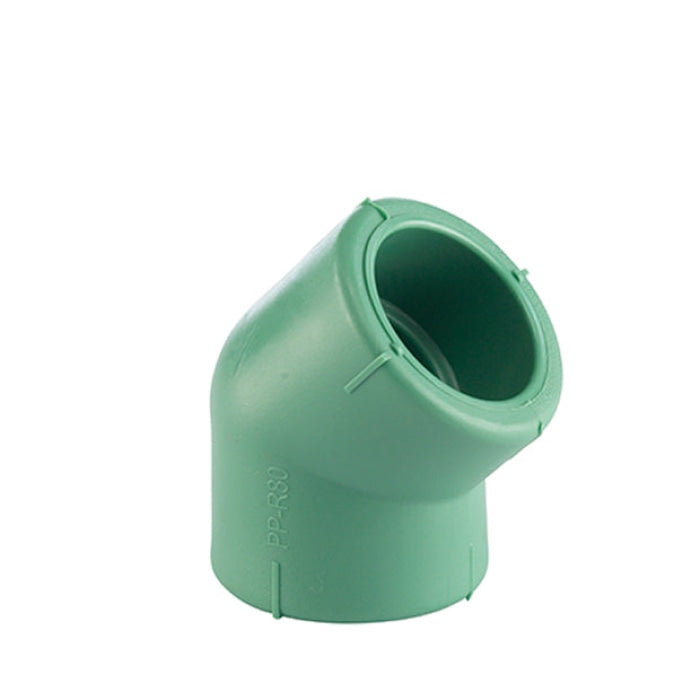

Wefatherm PPR Elbow 45°

Original price Dhs. 3.00 - Original price Dhs. 99.00
Original price
Dhs. 3.00
Dhs. 3.00 - Dhs. 99.00
Current price Dhs. 3.00
Size: 20mm

ELBOW 45°

SDR 6

The Wefatherm system can be applied for typical domestic water supply systems such as: - Drinking water; Drinking water is considered fresh water up to a temperature of 25°C for drinking and preparing food. - Hot tap water; Hot tap water is heated drinking water up to a temperature of 60°C. - Sanitary applications; Sanitary applications are applications for which the drinking water quality

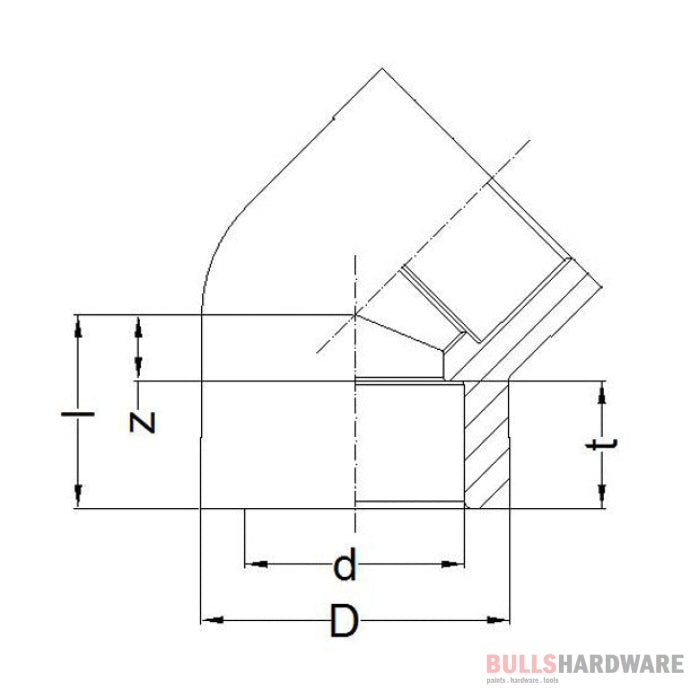

Article d D l z t kg
5155 23002 20 30,0 21,6 7,1 14 0,016
5155 23003 25 34,5 24,8 8,8 15 0,021
5155 23004 32 44,0 27,6 9,5 17 0,039
5155 23005 40 52,0 32,0 11,0 18 0,060
5155 23006 50 65,0 37,0 13,0 20 0,095
5155 23007 63 82,0 44,0 16,0 26 0,210
5155 23008 75 100,0 50,0 20,0 29 0,336
5155 23009 90 120,0 58,0 25,0 32 0,582
5155 23010 110 148,0 69,0 32,0 35 1,064
5155 23011 125 165,0 77,0 37,0 41 1,520
