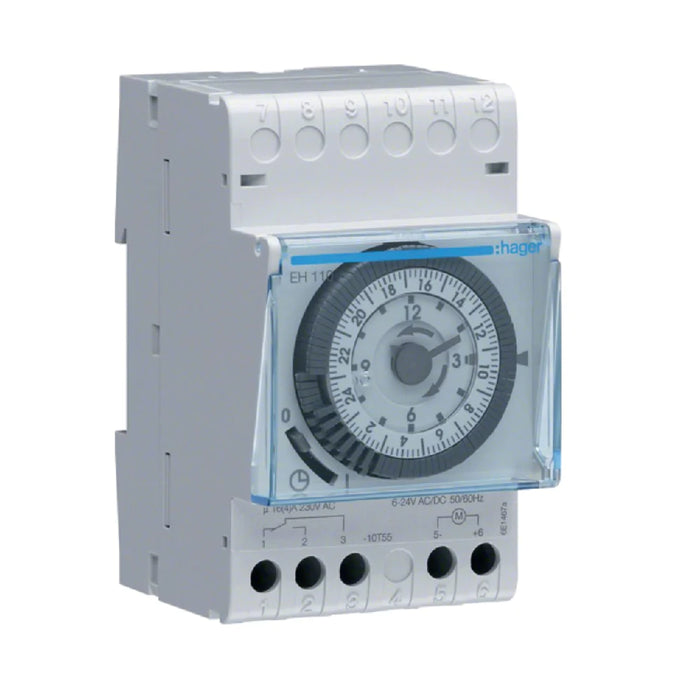

Timer Switch Hager EH110

EH110 Time switch daily cycle

Technical Characteristics close all Architecture Fixing mode: Din-Rail Functions Number of function channels: 1 Switching cycles: min. 50000 with slide switch for permanent on/automatic Configuration change-over contact, usable as NC or NO Main electrical features Frequency: 50/60 Hz Voltage Operating voltage: 230 V~ Electric current Max. power with cos phi 0.6: 3 A Switching current at cos ? = 0.6: max. 3 A Power Power consumed: 0,5 VA Power consumption (operation): 0,5 VA Loss power at full load: ? 1 W Total power loss under IN: 1 W Power dissipation per coil: 0,5 W Dimensions Depth of installed product: 54 mm Height of installed product: 90 mm Width of installed product: 65 mm Width of rail mounted device (RMD): 3 modules Fluorescent bulbs control Compact fluorescent lamps: max. 200 W Incandescent bulbs control 230 V incandescent lamps and halogen lamps: max. 900 W Max. power with incandescent lamps: 900 W
